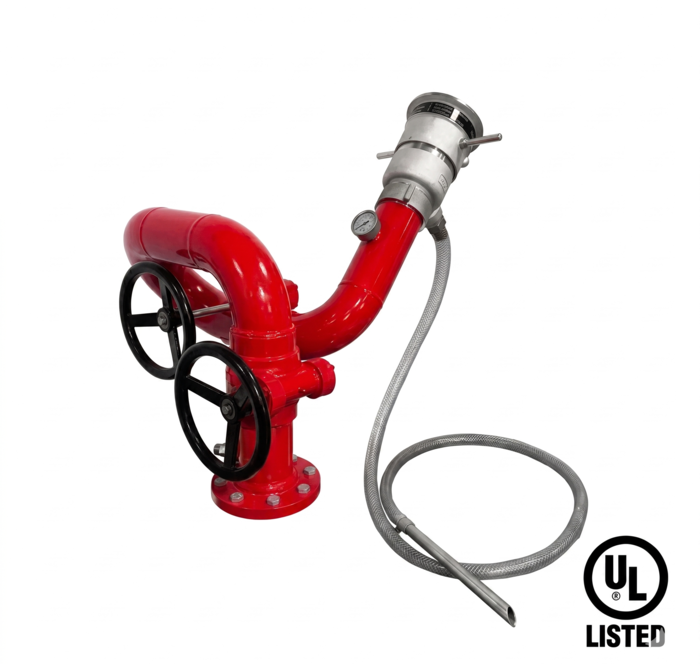

Varun 443 UL Listed Low Profile Stainless Steel Fire Monitor

Description

Introduction

The Varun 443 is a premier fire suppression solution designed for high-risk industrial environments that demand absolute reliability. This low-profile monitor combines superior stainless steel construction with precision engineering to deliver overwhelming water or foam volume exactly where it is needed.

Key Features

High-grade Stainless Steel waterway for maximum corrosion resistance and durability

Fully enclosed worm gear mechanism for smooth horizontal and vertical movement

Continuous 360 degree horizontal rotation with +90 to -65 degree vertical elevation

Flexible inlet options in 100 mm or 150 mm flanged sizes with a 4 inch BSP male outlet

UL Listed certification ensuring compliance with the highest global safety standards

Capable of handling operating pressures up to 12 kg/cm.sq (175 psi)

Compatible with fixed (H4) or variable(H4V) flow nozzles ranging from 500 to 1000 gpm

Benefits

When an emergency strikes, the last thing you should worry about is equipment failure. The Varun 443 solves this by using a fully enclosed gear system that prevents debris, ice, or sand from jamming the movement, ensuring you can aim the stream perfectly every time. Its stainless steel waterway is specifically designed to resist the harsh effects of salt air and chemicals, significantly extending the life of the product compared to standard monitors. The low-profile design provides a lower center of gravity, which reduces stress on your piping system and increases stability while discharging massive volumes of water.

Usage / How to Use

This monitor is ideally suited for permanent installation in oil refineries, petrochemical plants, offshore platforms, and aviation hangars. It is mounted onto a pressurized water manifold using its flanged base. During an incident, the operator uses the two integrated handwheels to rotate and tilt the monitor toward the fire. If equipped with a Jet Ratio Controller, it can automatically proportion foam for chemical fires. The worm gear design ensures the monitor stays in its last position even when unattended, allowing for safe, hands-free operation once the aim is set.
